5.90
Length
m
m
2.40
Beam
lt
kg
1850
175
hp
7
People
130
Fuel
Power
Tow Weight
adults
You want to do it all and need a boat that can keep up with your ever-changing boating lifestyle. Our versatile R590 SportZ Edition hits the water with all the essentials and many so called “extras” that other boat brands force you to pay for: bowrails, bilge pumps, internal lighting, under-floor fuel tanks, dry and wet storage and loads more. Simply strap on the outboard of your choice and get it wet.

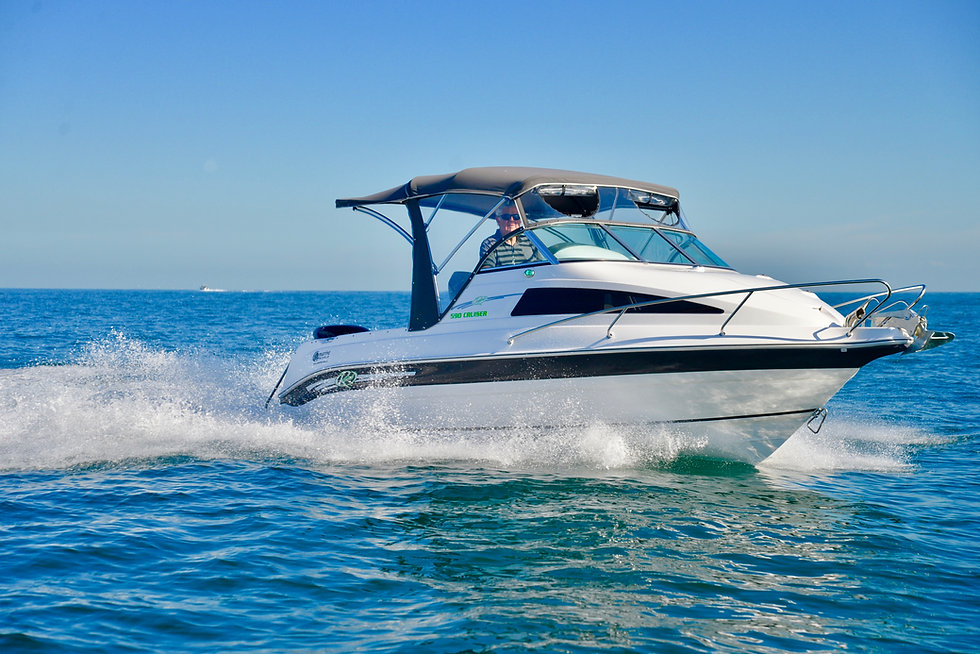

R590 IN MOTION
Check out the R580 strutting its considerable stuff. Every bit the consummate all-rounder, the R580 delivers versatile space well beyond what it's compact dimensions might suggest while the ride-quality in challenging conditions needs to be experienced.
COLOUR and TRIM*
All Revival hulls are available in the standard Arctic White gelcoat or splash out with one of eight (8) full or two-tone gelcoat options. SportZ and OffShore editions feature two-tone grey vinyl interiors while WeekEnders are treated to cloth detailing in the cabins.
Colour plays an important part in our daily lives. It reflects our mood, shows our allegiances and camouflages us within our environment. Colour is nature's mechanism for blending in or standing out. What colour are you?
Gelcoat Hull Side Two-Tone Colour (narrow plank)*
ARCTIC WHITE
(STANDARD)
WARM GULL GREY
CHARCOAL
HERMITAGE RED
OXFORD BLUE
POWDER BLUE
JET BLACK
APPLIED RED
EXTERIOR
Gelcoat Hull Full-Side Colours (chine to gunnel)*
ARCTIC WHITE
(STANDARD)
WARM GULL GREY
CHARCOAL
HERMITAGE RED
APPLIED RED
OXFORD BLUE
POWDER BLUE
JET BLACK
INTERIOR
Marine Carpet
(Standard)
Simulated Teak
(Optional)
*Colours depicted are digital approximations of the actual gel-coat colours and should serve guide only. Please review actual colour samples with your authorised Revival Boats dealer.
TECH SPEC and FEATURES
The R590is a feature rich family sportfisher that boasts one of the most versatile rear cockpits in its class. A wave-slicing 21deg deadrise ensures a soft, dry ride while the broad stance creates a stable and confident platform at rest and underway.
-
DIMENSIONSHull Length (mm)... 5250mm Hull Beam (mm)... 2200mm Transom Deadrise... 20 degrees Transom Height (inches)... 25"/XL Height on Trailer to top of Windscreen... 2070mm Overall Length on Trailer (mm)... 6900mm Draft (mm)... 300mm Hull Weight (kg) - dry... 650kg BMT Weight (kg) - dry... 1250kg Fuel Capacity (lt)... 100lt Number of People... 6 Adults Horsepower... 75 - 115hp Max Outboard Weight (kg)... 185kg Estimated Cruise Speed (kph) w/Mid-Range hp... 42kph Estimated WOT Speed (kph) w/Mid-Range hp... 72kph Internal Cockpit Length (mm)... 1800mm Internal Cockpit Beam (mm)... 1800mm
-
STANDARD FEATURESAnchor Storage Compartment with Large Front Opening Hatch Backrest and Bunks in Cabin - Upholstered Vinyl Bilge Pump Hose and Outlet Bollard Split - Stainless Steel Bow Roller - Stainless Steel Carpeted Floor and Sides - Glued Coaming Lights (2) Hull and Deck - All White Gelcoat with Edition Specific Stripes and Graphics Large Forward Storage/Casting Area with Open and Concealed Storage Bins Mechanical Steering Navigation Lights Padded transom Backrest Rear of Cockpit with Removable Fold-Down Rear Lounge Panic Rail for Passenger - Stainless Steel Port-side Coaming Storage Compartment Rear Bait Wells that Drain Overboard - Not Plumbed Rear Cleats - Stainless Steel (2) Rear Tow Eyes - Stainless Steel (2) Split Bowrails - Stainless Steel Standard Plastic Rear Rod Holders (2) Swivel Bucket Seats on Fixed Pedestals with Seat Slides (Non-Flip Up Seats) Twin-Core Tinned Wiring to Dah Underfloor Fuel Tank 100L with Breathers that Drain to Engine Well, Fuel Sender, Filler Cap in Engine Well Underfloor Kill Tank/ Storage Locker - Moulded Fibreglass Walk-Through Windscreen and Foredeck to Anchor Locker Water-Resistant Switch Panel Windscreen Grab Rail for Enhanced Strength and Convenience
-
OPTIONAL ACCESSORIESElectrical:
-
OPTIONAL COVERS AND CONVENIENCEHigh Quality Marine Grade Fabric: Covers: Bimini, Folds Down into Cockpit Covers: Bimini Extension Covers: Zippered panel in Bimini Extension Covers: Front and Side Clears Covers: Zippered Panel in Front Clears (Each) Covers: Tonneau Travel Cover Covers: Tonneau Travel Cover over Windscreen Covers: Camper Back with Removable Panels Covers: Cabin Divider Covers: Flyscreen Mesh Panels to Cabin Divider Covers: Flyscreen Mesh Panels to Camper Back Covers: Custom-Fitted Bag Storage/Travel Cover Folding Rocket Launcher - Alloy Folding Rocket Launcher - Stainless Steel Seating and Convenience: Delete Carpet and Replace with Non-Skid and Alloy Trim Strips Delete Carpet from Side Pockets and Inner Panels Dinette Table - Removable Foss Cabin Lining Front Carpeted Casting Platform Infill Gas Assist Seat Pedestals (Each) Height Adjustable Seat Pedestals (Each) Moulded Fibreglass Seat Storage Boxes (Each) Padded Side Coamings - Vinyl Upholstery Rear Seat Storage Boxes with Wrap Around Backrest Roll-Over Adjustable Seat Bases - Stainless Steel Slip-Resistant Simulated Teak Rubber Flooring System Stainless Steel Rear Platform and Boarding Rails Stainless Steel Rear Boarding Ladder Stainless Steel Boarding Ladder and Rails (No Boarding Platforms) Stainless Steel Ski Pole - Removable with Floor Mount
NOTABLE FEATURES*
Every Revival comes pre-loaded with standard features many of our competitors consider to be options. SportZ, OffShore and Weekender grades vary in the level of fit-out and can be further enhanced with additional factory-installed options and accessories.
Exterior Features
Revival firmly believes in a "what you see is what you get" approach to boat design and packaging. We load our boats to the gunnels with standard features many of our competitors list as options yet offer plenty of scope for personalising your craft to reflect your boating desires. Uncompromising yet versatile boats tailored with YOU in mind.
Interior Features
Fact: you'll spend much longer at rest than driving to and from your destination, so its super important that every Revival interior reflects its intended purpose. Boasting unrivalled storage options for all your gear, Revival strives for uncluttered spaces to fish or socialise. At the end of the day, simply hose out and head home. Boat. Wash. Repeat!
Optional Equipment
Half the fun of owning a boat is personalising it to reflect your boating personality. Whether its for convenience, functionality or simply "bling' factor, Revival offers an extensive array of options and accessories sure to make your boating mates green with envy. What's more, our stream-lined interiors make customisation at any stage a breeze.
