SportZ

INDICATIVE PRICE RANGE*

$44k - 47k BMT

*Provided as a guide only. Price may vary depending upon dealer packaging, statutory costs and freight.

ALSO CONSIDER:

5.30

Length

m

m

2.20

Beam

lt

kg

1300

115

hp

6

People

100

Fuel

Power

Tow Weight

adults

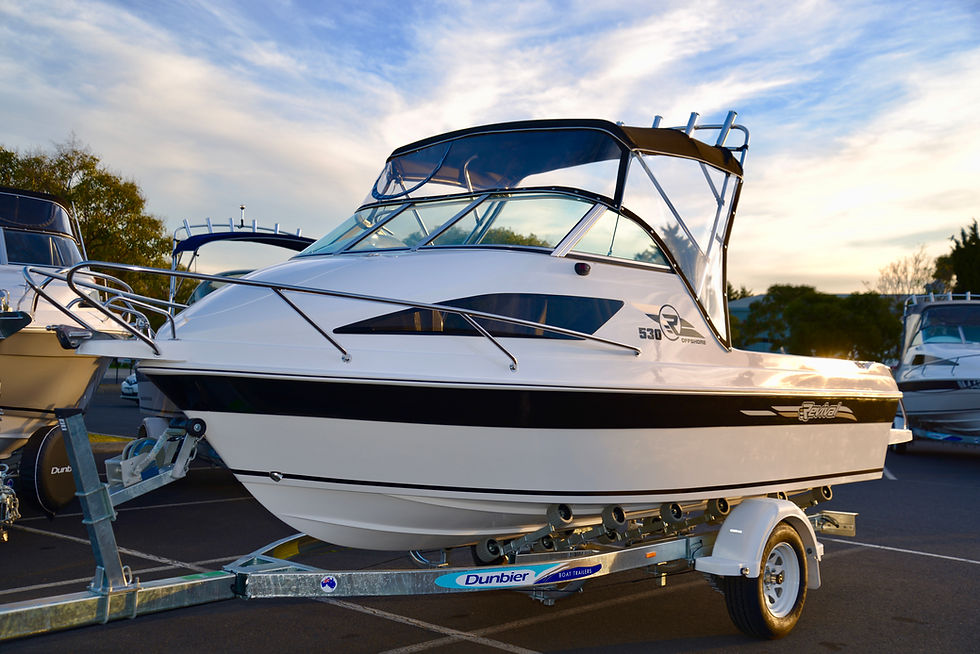

You want to do it all and need a boat that can keep up with your ever-changing boating lifestyle. Our versatile R530 SportZ Edition hits the water with all the essentials and many so called “extras” that other boat brands force you to pay for: bowrails, bilge pumps, internal lighting, under-floor fuel tanks, dry and wet storage and loads more. Simply strap on the outboard of your choice and get it wet.







R530 IN MOTION

Check out the R530 strutting its considerable stuff. Every bit the consummate all-rounder, the R530 delivers versatile space well beyond what it's compact dimensions might suggest while the ride-quality through messy bay chop needs to be experienced.


COLOUR and TRIM*

All Revival hulls are available in the standard Arctic White gelcoat or splash out with one of eight (8) full or two-tone gelcoat options. SportZ and OffShore editions feature two-tone grey vinyl interiors while WeekEnders are treated to cloth detailing in the cabins.



Colour plays an important part in our daily lives.  It reflects our mood, shows our allegiances and camouflages us within our environment. Colour is nature's mechanism for blending in or standing out. What colour are you?



Gelcoat Hull Side Two-Tone Colour (narrow plank)*



ARCTIC WHITE

(STANDARD)

WARM GULL GREY

CHARCOAL

HERMITAGE RED

OXFORD BLUE

POWDER BLUE

JET BLACK

APPLIED RED

EXTERIOR

Gelcoat Hull Full-Side Colours (chine to gunnel)*



ARCTIC WHITE

(STANDARD)

WARM GULL GREY

CHARCOAL

HERMITAGE RED

APPLIED RED

OXFORD BLUE

POWDER BLUE

JET BLACK

INTERIOR

Marine Carpet

(Standard)

Simulated Teak

(Optional)

*Colours depicted are digital approximations of the actual gel-coat colours and should serve  guide only.  Please review actual colour samples with your authorised Revival Boats dealer.

TECH SPEC and FEATURES

Despite its garage-friendly dimensions, the ALL-NEW R530 boasts one of the largest rear cockpits in its class.  A wave-slicing 20deg deadrise  ensures a soft, dry ride while the broad stance creates a stable and confident platform at rest and underway.

FEATURES


  • Anchor Storage Compartment with Large Front Opening Hatch
  • Backrest and Bunks in Cabin - Upholstered Vinyl
  • Bilge Pump Hose and Outlet
  • Bollard Split - Stainless Steel
  • Bow Roller - Stainless Steel
  • Carpeted Floor and Sides - Glued
  • Coaming Lights (2)
  • Cockpit Side Pockets - Fibreglass gelcoated white
  • Hull and Deck - All White Gelcoat with Edition Specific Stripes and Graphics
  • Large Forward Storage/Casting Area with Open and Concealed Storage Bins
  • Mechanical Steering
  • Navigation Lights
  • Padded transom Backrest Rear of Cockpit with Removable Fold-Down Rear Lounge
  • Panic Rail for Passenger - Stainless Steel
  • Port-side Coaming Storage Compartment
  • Rear Bait Wells that Drain Overboard - Not Plumbed
  • Rear Cleats - Stainless Steel (2)
  • Rear Tow Eyes - Stainless Steel (2)
  • Split Bowrails - Stainless Steel
  • Standard Plastic Rear Rod Holders (2)
  • Swivel Bucket Seats on Fixed Pedestals with Seat Slides (Non-Flip Up Seats)
  • Twin-Core Tinned Wiring to Dash
  • Underbunk Cabin Storage with Vinyl-Upholstered Bunk Cushions
  • Underfloor Fuel Tank 100L with Breathers that Drain to Engine Well, Fuel Sender, Filler Cap in Engine Well
  • Underfloor Kill Tank/ Storage Locker - Moulded Fibreglass
  • Walk-Through Windscreen and Foredeck to Anchor Locker
  • Water-Resistant Switch Panel
  • Windscreen Grab Rail for Enhanced Strength and Convenience




OPTIONAL ACCESSORIES


Electrical:

  • Upgrade Bilge Pump to Auto with Float Switch
  • Twin Battery System Upgrade
  • Electric Anchor Winch - Pre Install and Fit Hawse Pipe
  • Electric Anchor Winch - Complete Installation
  • 27Mhz Radio and Antenna Installation
  • VHF Radio and Antenna Installation
  • Fusion Marine Sound System (Quote Upon Request)
  • 12-Volt Socket Installation (Each)
  • 12-Volt USB Installation (Each)
  • Live Bait Well Plumbing (Each)
  • Plumbed Deck Wash
  • Concealed LED Strip Lights x 2
  • LED Spotlights off Rocket Launcher x 2
  • LED Cabin Light
  • Fish Finder/GPS Installation (Quote Upon Request)
Hydraulic Steering:
  • Sea Star Hydraulic Helm and Ram in Lieu of Standard Mechanical System
Deck Fittings:
  • Stainless Steel Rod Holders
  • Rope Mooring Cleats - Stainless Steel
  • Fender Holders (Retractable)




DIMENSIONS


Hull Length (mm)... 5250mm Hull Beam (mm)... 2200mm Transom Deadrise... 20 degrees Transom Height (inches)... 25"/XL Height on Trailer to top of Windscreen... 2070mm Overall Length on Trailer (mm)... 6900mm Draft (mm)... 300mm Hull Weight (kg) - dry... 650kg BMT Weight (kg) - dry... 1250kg Fuel Capacity (lt)... 100lt Number of People... 6 Adults Horsepower... 75 - 115hp Max Outboard Weight (kg)... 185kg Estimated Cruise Speed (kph) w/Mid-Range hp... 42kph Estimated WOT Speed (kph) w/Mid-Range hp... 72kph Internal Cockpit Length (mm)... 1800mm Internal Cockpit Beam (mm)... 1800mm




OPTIONAL COVERS AND CONVENIENCE


High Quality Marine Grade Fabric:

  • Covers: Bimini, Folds Down into Cockpit
  • Covers: Bimini Extension
  • Covers: Zippered panel in Bimini Extension
  • Covers: Front and Side Clears
  • Covers: Zippered Panel in Front Clears (Each)
  • Covers: Tonneau Travel Cover
  • Covers: Tonneau Travel Cover over Windscreen
  • Covers: Camper Back with Removable Panels
  • Covers: Cabin Divider
  • Covers: Flyscreen Mesh Panels to Cabin Divider
  • Covers: Flyscreen Mesh Panels to Camper Back
  • Covers: Custom-Fitted Bag Storage/Travel Cover
  • Folding Rocket Launcher - Alloy
  • Folding Rocket Launcher - Stainless Steel
Seating and Convenience:
  • Delete Carpet and Replace with Non-Skid and Alloy Trim Strips
  • Delete Carpet from Side Pockets and Inner Panels
  • Dinette Table - Removable
  • Foss Cabin Lining
  • Front Carpeted Casting Platform Infill
  • Gas Assist Seat Pedestals (Each)
  • Height Adjustable Seat Pedestals (Each)
  • Moulded Fibreglass Seat Storage Boxes (Each)
  • Padded Side Coamings - Vinyl Upholstery
  • Rear Seat Storage Boxes with Wrap Around Backrest
  • Roll-Over Adjustable Seat Bases - Stainless Steel
  • Slip-Resistant Simulated Teak Rubber Flooring System
  • Stainless Steel Rear Platform and Boarding Rails
  • Stainless Steel Rear Boarding Ladder
  • Stainless Steel Boarding Ladder and Rails (No Boarding Platforms)
  • Stainless Steel Ski Pole - Removable with Floor Mount







NOTABLE FEATURES*

Every Revival comes pre-loaded with standard features many of our competitors consider to be options. SportZ, OffShore and Weekender grades vary in the level of fit-out and can be further enhanced with additional factory-installed options and accessories.

25" TRANSOM FOR

ADDED SAFETY & PERFORMANCE

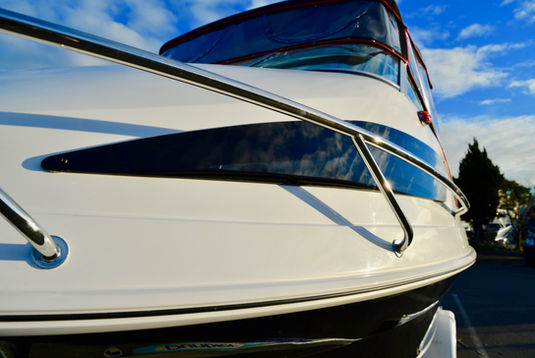

Exterior Features

Revival firmly believes in a  "what you see is what you get" approach to boat design and packaging. We load our boats to the gunnels with standard features many of our competitors list as options yet offer plenty of scope for personalising your craft to reflect your boating desires. Uncompromising yet versatile boats tailored with YOU in mind.

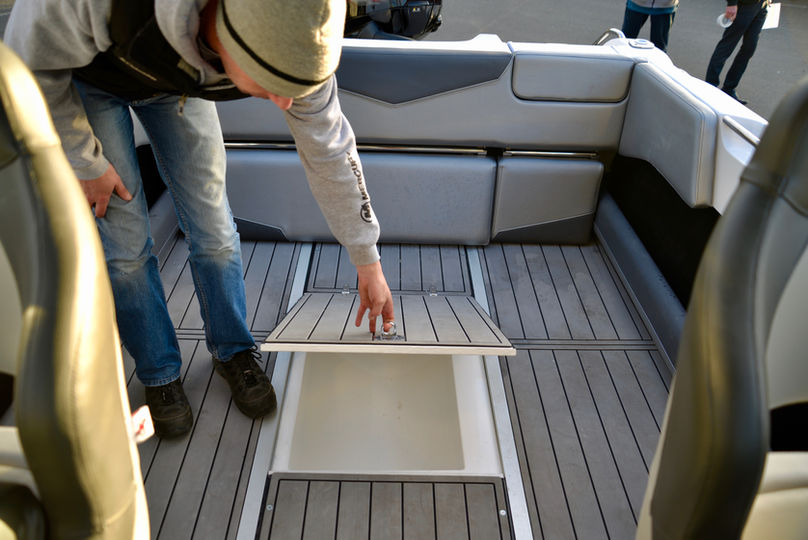

Interior Features

Fact: you'll spend much longer at rest than driving to and from your destination, so its super important that every Revival interior reflects its intended purpose. Boasting unrivalled storage options for all your gear, Revival strives for uncluttered spaces to fish or socialise. At the end of the day, simply hose out and head home. Eat. Boat. Repeat!

LARGEST DASH IN CLASS MEANS IT'LL FIT UP TO 16" HEAD UNITS

LOWRANCE FISHFINDERS & GPS CHARTPLOTTERS

Optional Equipment

Half the fun of owning a boat is personalising it to reflect your boating personality. Whether its for convenience, functionality or simply "bling' factor, Revival offers an extensive array of options and accessories sure to make your boating mates green with envy. What's more, our stream-lined interiors make customisation at any stage a breeze.
