X-RIDER
R590 XRider LOGO RED.png
REVISED R530 XRider png.png

INDICATIVE PRICE RANGE*

$49k - 55k BMT

*Provided as a guide only. Price may vary depending upon dealer packaging, statutory costs and freight.

ALSO CONSIDER:

5.30

Length

m

m

2.20

Beam

lt

kg

1325

115

hp

6

People

100

Fuel

Power

Tow Weight

adults

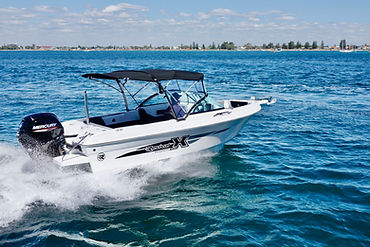

Designed to squeeze into the average suburban garage, the R530 X-Rider redefines your expectations of how BIG a small bowrider can actually be. Ski. Fish. Just add water

and set your next adventure free.

No matter what's on your family's boating agenda, the new R530 X-Rider delivers

It’s true…SIZE really does matter. Coming in at a garage-friendly 5.3m (or under 6m on a trailer with a swing-away draw bar) the fun-sized R530 X-Rider is a rare find in a market where boats are getting bigger, but new home lots are rapidly shrinking. But don’t for a moment think that downsizing your Revival means compromising on functionality or ride.



The all new R530 X-Rider borrows the capable R530/R525 platform and dials up the fun factor. Featuring a lockable anchor well capable of accommodating a full-sized winch, a convertible bow-zone, generous underfloor storage, bait well and rear drop in door, the R530 X-Rider flicks a middle finger salute at tinny brigade that have filled this niche...until now!

    Versatile package that delivers on all fronts.

     Redesigned helm accommodates up to two 7" head units.

     Efficient hull design maximises performance without compromising on ride comfort       or stability at rest.

     Unrivalled storage options to hide skis, fishing tackle and family gear.

     New X-Rider re-write's the bowrider rule book, and creates a few rules of its own.

 X-RIDER
R590 XRider LOGO RED.png
REVISED R530 XRider png.png

R530 outboard options

A hallmark of all Revival hulls is an efficient hull design that doesn't compromise on ride quality or stability. Ideally powered by 4-Stroke or DI (Direct Injection) outboards in the 90 - 115hp range, the R530 will provide ample performance even with with smaller torque-rich engines such as Mercury's 90HP FourStroke outboard.

90

115hp

Towabililty

The R530 X-Rider has a combined towing weight of around 1300 -1400kg which puts it well within the scope of any SUV, ute or wagon with a tow-rating of 1500kg. The current Mini Countryman is one of many compact tow tugs that are up to the task.

1325kg*

*Nominal R530 X-Rider BMT dry towing  weight
*2018 Mini Countryman..1500kg braked towing capacity


COLOUR and TRIM*

All Revival hulls are available in the standard Arctic White gelcoat or splash out with one of eight (8) full or two-tone gelcoat options. X-Rider, SportZ and OffShore editions feature two-tone grey vinyl interiors while WeekEnders are treated to cloth detailing in the cabins.



Colour plays an important part in our daily lives.  It reflects our mood, shows our allegiances and camouflages us within our environment. Colour is nature's mechanism for blending in or standing out. What colour are you?



Gelcoat Hull Side Two-Tone Colour (narrow plank)*



ARCTIC WHITE

(STANDARD)

WARM GULL GREY

CHARCOAL

HERMITAGE RED

OXFORD BLUE

POWDER BLUE

JET BLACK

APPLIED RED

EXTERIOR

Gelcoat Hull Full-Side Colours (chine to gunnel)*



ARCTIC WHITE

(STANDARD)

WARM GULL GREY

CHARCOAL

HERMITAGE RED

APPLIED RED

OXFORD BLUE

POWDER BLUE

JET BLACK

INTERIOR

Marine Carpet

(Standard)

Simulated Teak

(Optional)

*Colours depicted are digital approximations of the actual gel-coat colours and should serve  guide only.  Please review actual colour samples with your authorised Revival Boats dealer.



TECH SPEC and FEATURES

The all-new R530 boasts one of the most versatile layouts in its class. A chop-crunching 20deg deadrise  ensures a soft, dry ride while the broad stance creates a stable and confident platform at rest and underway.

R530 X-RIDER FEATURES


  • Anchor Storage Compartment with Large Front Opening Hatch
  • Bilge Pump Hose and Outlet
  • Bow Rider Cushions and Upholstered BackRests with Upholstered Storage Pockets (Centre Infill Optional)
  • Bow Roller - Stainless Steel
  • Carpeted Floor
  • Cockpit Side Pockets - Carpeted with Vinyl Trim
  • Drink Holders - x 4 (Black Plastic)
  • Foam-Filled Hull (From 1st July 2019)
  • Glove Box - Large Fully-Carpeted
  • Mechanical Steering with 3-Spoke Wheel
  • Hull and Deck - All White Gelcoat with Edition Specific Stripes and Graphics
  • Large Bow Seating Area with Upholstered Seats Atop Concealed Storage Bins
  • Navigation Lights
  • Padded Side Pockets - Vinyl Detailing
  • Passenger Grab Handle - Black
  • Rear Starboard-Side Storage Locker/Bait Well that Drains Overboard - Not Plumbed
  • Rear Fixed Cleats - Stainless Steel (2)
  • Rear Door/Step Through Transom
  • Rear Tow Eyes - Stainless Steel (2)
  • Swivel Bucket Seats on Fixed Pedestals with Seat Slides
  • Twin-Core Tinned Wiring to Dash
  • Two-Tone or Slab-side Coloured Gelcoat
  • Underfloor Fuel Tank 100L with Breathers that Drain to Engine Well, Fuel Sender, Filler Cap in Engine Well
  • Underfloor Kill Tank/ Storage Locker - (Aprox 150lt)
  • Water-Resistant Switch Panel




OPTIONAL ACCESSORIES


Electrical:

  • Upgrade Bilge Pump to Auto with Float Switch
  • Twin Battery System Upgrade
  • Electric Anchor Winch - Pre Install and Fit Hawse Pipe
  • Electric Anchor Winch - Complete Installation
  • 27Mhz Radio and Antenna Installation
  • VHF Radio and Antenna Installation
  • Upgraded Slim-Line Deluxe Switch Panel
  • Fusion Marine Sound System (Quote Upon Request)
  • 12-Volt Socket Installation (Each)
  • 12-Volt USB Installation (Each)
  • Live Bait Well Plumbing
  • Plumbed Deck Wash
  • Concealed LED Strip Lights x 2
  • LED Spotlights off Rocket Launcher x 2
  • Fish Finder/GPS Installation (Quote Upon Request)
Hydraulic Steering:
  • Sea Star Hydraulic Helm and Ram in Lieu of Standard Mechanical System
Deck Fittings:
  • Stainless Steel Rod Holders
  • Rope Mooring Cleats - Stainless Steel
  • Stainless Steel Pop-up Cleats
  • Fender Holders (Retractable)




DIMENSIONS


Hull Length (mm)... 5300mm Hull Beam (mm)... 2200mm Transom Deadrise... 20 degrees Transom Height (inches)... 25"/XL Height on Trailer to top of Windscreen... 2100mm Overall Length on Trailer (mm)... 6500mm Draft (mm)... 300mm Hull Weight (kg) - dry... 650kg BMT Weight (kg) - dry... 1350kg* (Subject to variation) Fuel Capacity (lt)... 100lt Number of People... 6 Adults Horsepower... 90 - 115hp Max Outboard Weight (kg)... 185kg Estimated Cruise Speed (kph) w/Mid-Range hp... 42kph Estimated WOT Speed (kph) w/Mid-Range hp... 72kph (135HP) Internal Cockpit Length (mm)... 1800mm (Aprox) Internal Cockpit Beam (mm)... 1800mm (Aprox)




OPTIONAL COVERS AND CONVENIENCE


High Quality Marine Grade Fabric:

  • Covers: Bimini, Folds Down into Cockpit
  • Covers: Bimini Extension
  • Covers: Bow Cover
  • Covers: Zippered panel in Bimini Extension
  • Covers: Front and Side Clears
  • Covers: Zippered Panel in Front Clears (Each)
  • Covers: Tonneau Travel Cover
  • Covers: Tonneau Travel Cover over Windscreen
  • Covers: Camper Back with Removable Panels
  • Covers: Bow Divider
  • Covers: Flyscreen Mesh Panels to Camper Back
  • Covers: Custom-Fitted Bag Storage/Travel Cover
  • Folding Rocket Launcher - Alloy
  • Folding Rocket Launcher - Stainless Steel
Seating and Convenience:
  • Bow Infill Cushion (Upholstered)
  • Boarding Platforms (Moulded) and Stainless Steel Rails
  • Delete Carpet and Replace with Revival-Tread Non-Skid and Alloy Trim Strips
  • Dinette Table - Removable
  • Deluxe Padded Rear Seat Boxes with Upholstered Seat Bases
  • Front Carpeted Casting Platform Infill
  • Gas Assist Seat Pedestals (Each)
  • Height Adjustable Seat Pedestals (Each)
  • Padded Side Coamings - Vinyl Upholstery
  • Pedestal seats - Deluxe with Flip-Up Bolsters
  • Roll-Over Adjustable Seat Bases - Stainless Steel
  • Slip-Resistant Revival-Tread Flooring System
  • Stainless Steel Rear Boarding Ladder (For Platforms)
  • Stainless Steel Boarding Ladder and Rails (No Boarding Platforms)
  • Stainless Steel Ski Pole - Removable with Floor Mount







NOTABLE FEATURES*

Every Revival comes pre-loaded with standard features many of our competitors consider to be options. SportZ, OffShore and Weekender grades vary in the level of fit-out and can be further enhanced with additional factory-installed options and accessories.

25" TRANSOM FOR

ADDED SAFETY & PERFORMANCE

Exterior Features

Revival firmly believes in a  "what you see is what you get" approach to boat design and packaging. We load our boats to the gunnels with standard features many of our competitors list as options yet offer plenty of scope for personalising your craft to reflect your boating desires. Uncompromising yet versatile boats tailored with YOU in mind.

Interior Features

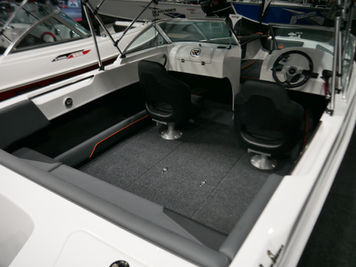

Fact: you'll spend much longer at rest than driving to and from your destination, so its super important that every Revival interior reflects its intended purpose. Boasting unrivalled storage options for all your gear, Revival strives for uncluttered spaces to fish or socialise. At the end of the day, simply hose out and head home. Boat. Wash. Repeat!

LARGE DASH  MEANS IT'LL FIT LARGE HEAD UNITS

FISHFINDERS & GPS CHARTPLOTTERS

Optional Equipment

Half the fun of owning a boat is personalising it to reflect your boating personality. Whether its for convenience, functionality or simply "bling' factor, Revival offers an extensive array of options and accessories sure to make your boating mates green with envy. What's more, our stream-lined interiors make customisation at any stage a breeze.
